Feature:

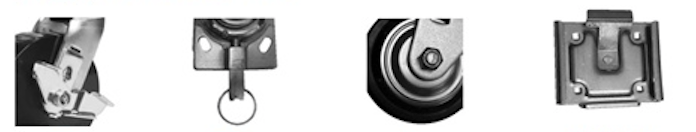

- Improve raceway design
- One piece drop forged steel swivel raceway with 1/4″ top plate thickness
- Raceway is precision machined and hardened
- Kingpin less style construction eliminates problems associated with kingpin failure
- Legs are formed from 1/4″ forged steel and double welded to the raceway
- 1/2 Diameter axle bolt with lock nut. Zerg grease fitting in axle & raceway
- Applications: Greet for applications involving extreme shock loading, towing, moving over cracks, uneven floor, and tarmacs, heavy mobile machinery and equipment, heavy-duty material handling carts, buggies and platform trucks, ground support equipment, heavy duty warehouse and manufacturing plant applications, etc
Top Plate:
- Overall size: 101.6mm*114.3mm
- Bolt hole pattern: 66.7~92.1mm*76.2~76.2mm
- Attaching bolt size: ∅11mm
Special Finishes:
- Polished gold finish
- Black oxide
- Nickel
- Chrome
- Spraying
Wheels:
Options:
Stardrawing
